Dual-station printing
Print two cylindrical or tapered items simultaneously, including bottles, cups, jars, and tumblers.

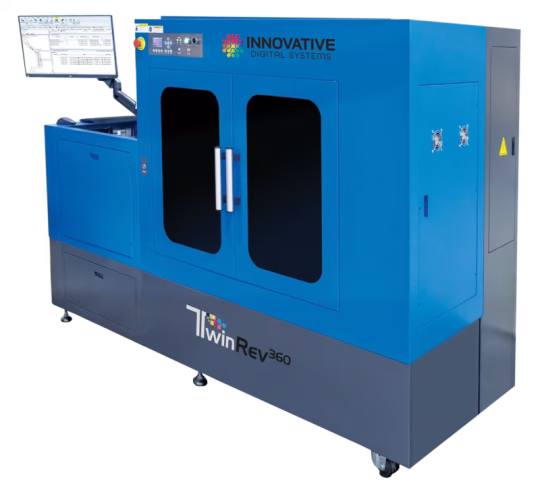

DUAL-STATION UV ROTARY PRINTER
Two items. One production workflow.
Print two cylindrical or tapered products simultaneously, with UV-LED curing and a maximum print length of 360 mm.
Request printed samples
BUILT FOR YOUR PRODUCTION
Cylindrical and tapered printing, with color, white, and varnish.
Print two cylindrical or tapered items simultaneously, including bottles, cups, jars, and tumblers.
Ten printheads come standard, with automatic voltage and temperature control and resolution up to 1200 × 900 DPI.
Accommodates items up to 360 mm long, with a standard substrate diameter range of 40–130 mm.
Jettable primer or light cyan/light magenta configurations are available with a machine upgrade.
SEE THE POSSIBILITIES
Bottles • Cups • Jars • Tumblers • Cylindrical and tapered products
| Printhead system | Ricoh Gen 4 • 10 printheads |
|---|---|
| Maximum resolution | 1200 × 900 DPI |
| Maximum print length | 360 mm / 14.17 in. |
| Substrate diameter | 40–130 mm |
| Standard ink configuration | CMYK + White + Varnish |
| Print system | Ricoh Gen 4 printheads with automatic voltage and temperature control. Ten printheads standard. |
|---|---|
| Maximum resolution | 1200 × 900 DPI |
| UV-LED lamps | Two 360 mm, 8-watt LED lamps standard |
| Standard ink configuration | UV-curable CMYK, white, and varnish |
| Ink supply | 1.5 L per color; automatic ink supply |
| Optional ink configurations | Light cyan/light magenta or primer; machine upgrade required |
| Maximum print length | 360 mm / 14.17 in. |
| Standard substrate size | Diameter: 40–130 mm Length: up to 360 mm |
| Interface / RIP software | Ethernet; ColorPRINT RIP software; Printer Control Software (PCS); color LCD control panel |
| Environment | Temperature: 16–28°C (61–82°F) Recommended humidity: 40–70% Altitude: up to 1,609 m (5,280 ft) |
| Machine dimensions | 1050 × 2200 × 1894 mm |
| Approximate weight | 600 kg / 1,322 lb |
| Electrical | Single-phase 220 V ±10%, 50/60 Hz; 15 A; 3300 W |
| Compressed air | 85–100 PSI shop air |
Decorate straight-walled or tapered drinkware and other cylindrical products. Ask IDS to evaluate your material and application.
The UV ink system uses 1.5-liter containers for each color, with automatic ink delivery.
Two 360 mm, 8-watt LED lamps come standard.
Ethernet connectivity, ColorPRINT RIP software, Printer Control Software (PCS), and a color LCD control panel.
Explore application-specific rotary fixtures through Digital Print Supplies.
IDS drinkware demonstration.
Watch the IDS tumbler and bottle printing demonstration.
See the TwinRev 360 dual-station printing process.
REQUEST A QUOTE OR SAMPLE
Tell us about your product, material, and printing goals. Our team will help determine the right printing solution for your needs. You can also request a printed sample to see the results firsthand.
