Ricoh Gen 6 printheads
Automatic voltage and temperature control, with resolution up to 1200 DPI.

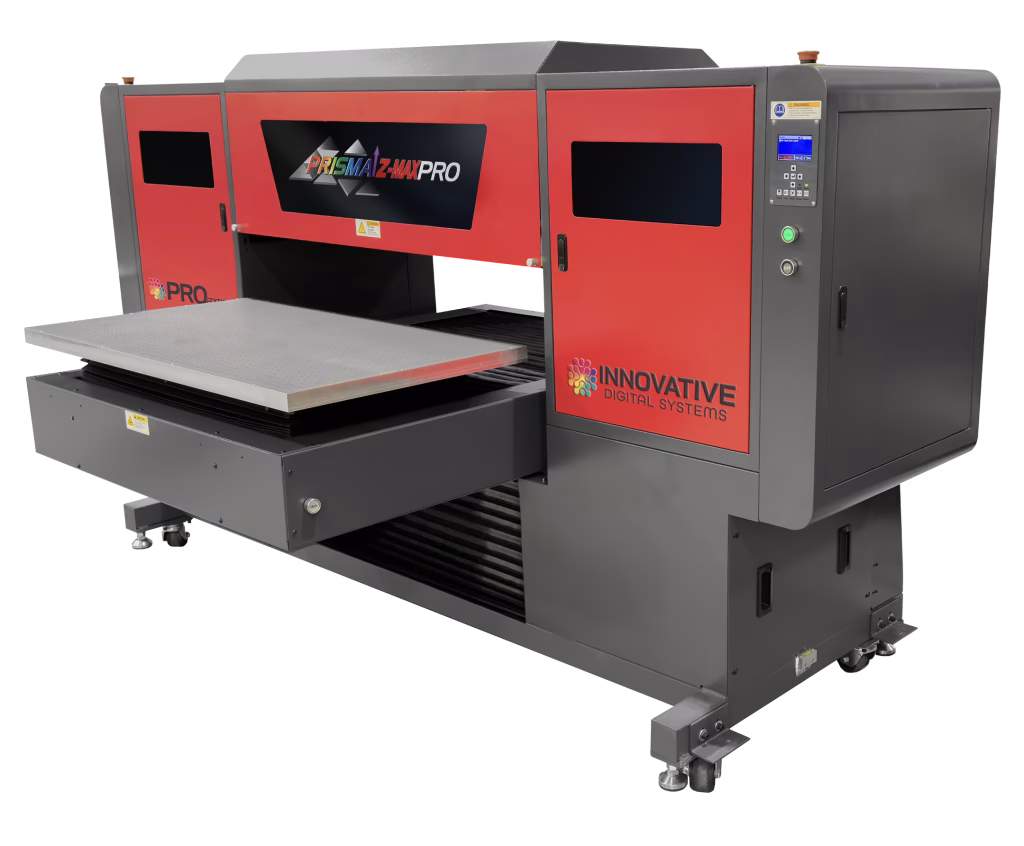

HIGH-GAP UV FLATBED PRINTER
More height. More possibilities.
Direct-to-object UV printing for wood, thick materials, and curved or uneven products.
Request printed samples
BUILT FOR YOUR PRODUCTION
High-gap printing. A deep drop table. Flexible flatbed production.
Automatic voltage and temperature control, with resolution up to 1200 DPI.

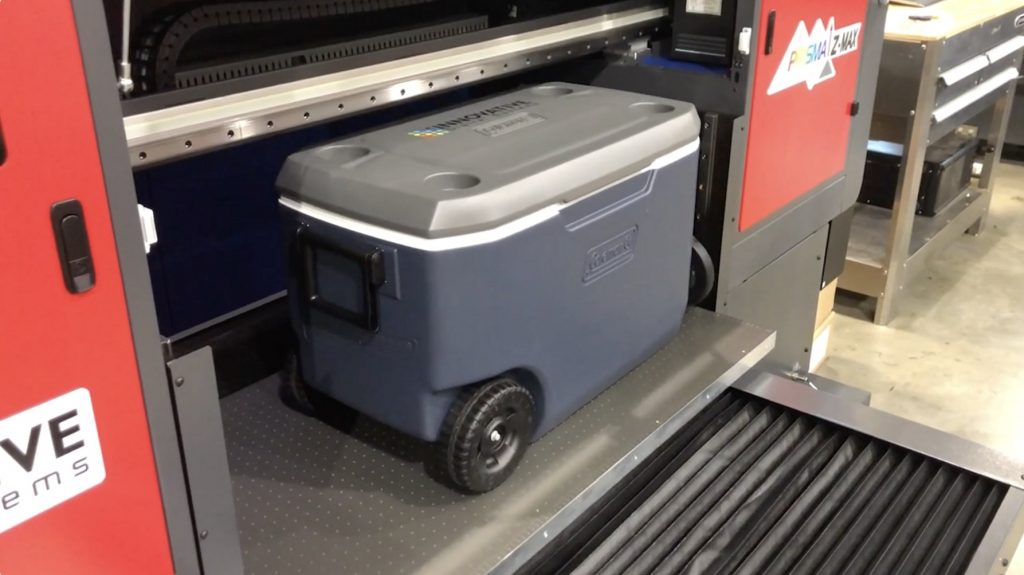

The drop vacuum table accommodates media up to 500 mm (19.7 in.) thick.

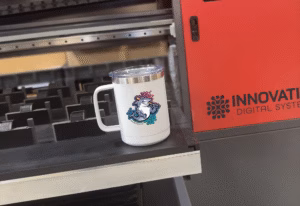

Decorate curved, uneven, and contoured surfaces with direct-to-object UV printing.

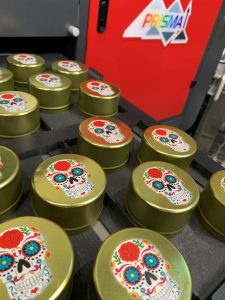

Arrange multiple small parts or a larger item on the 1100 × 610 mm table.
SEE THE POSSIBILITIES
Wood • Glass • Acrylic • Metal • Tall and irregular products
| Printhead system | Ricoh Gen 6 |
|---|---|
| Maximum resolution | 1200 DPI |
| Table size (W × D) | 1100 × 610 mm / 43.3 × 24.0 in. |
| Maximum media size (W × D) | 1100 × 600 mm / 43.3 × 23.6 in. |
| Maximum media thickness | 500 mm / 19.7 in. |
| Print system | Ricoh Gen 6 print heads. Automatic voltage and temperature control. Air-cooled UV-LED lamps. |
|---|---|
| Maximum resolution | 1200 DPI |
| Ink | UV-curable W + CMYKLcLm + OrGr + V. All inks are Prop65 compliant, according to IDS. |
| Ink capacity & system | 1 L per color. Automatic ink supply system. Active negative-pressure system. |
| Media | PVC, wood, glass, foam board, acrylic, tile, metal, plywood, plastic, etc. Maximum media weight: 44 lbs (20 kg). |
| Interface / RIP software | ColorPRINT RIP software, color LCD display, Printer Control Software (PCS). |
| Environment | Temperature: 16–28°C (61–82°F) Humidity: 40–70% (recommended) Altitude: up to 1,000 m (3,281 ft) |
| Electrical | Single phase 220 V ±10% (50/60 Hz AC); 1100 W / 5 A |
| Table size (W × D) | 1100 × 610 mm (43.3 × 24.0 in.) |
| Maximum media size (W × D) | 1100 × 600 mm (43.3 × 23.6 in.) |
| Maximum media thickness | Up to 500 mm (19.7 in.) with the Z-Max version |
| Dimensions (W × D × H) | 2655 × 1480 × 1705 mm 104.5 × 58.3 × 67.1 in. |
UV-curable color inks, opaque white, and varnish support vivid decoration and textured effects.
A 1 L supply per color works with automatic ink delivery and active negative pressure.
Air-cooled UV-LED lamps are part of the listed print system.
Print on PVC, wood, glass, foam board, acrylic, tile, metal, plywood, and plastic. Maximum media weight is 20 kg (44 lbs).
Custom fixtures and jigs are available through Digital Print Supplies for flatbed printing applications.
See high-gap UV printing on a softball, baseball, and golf ball—all in one cycle.

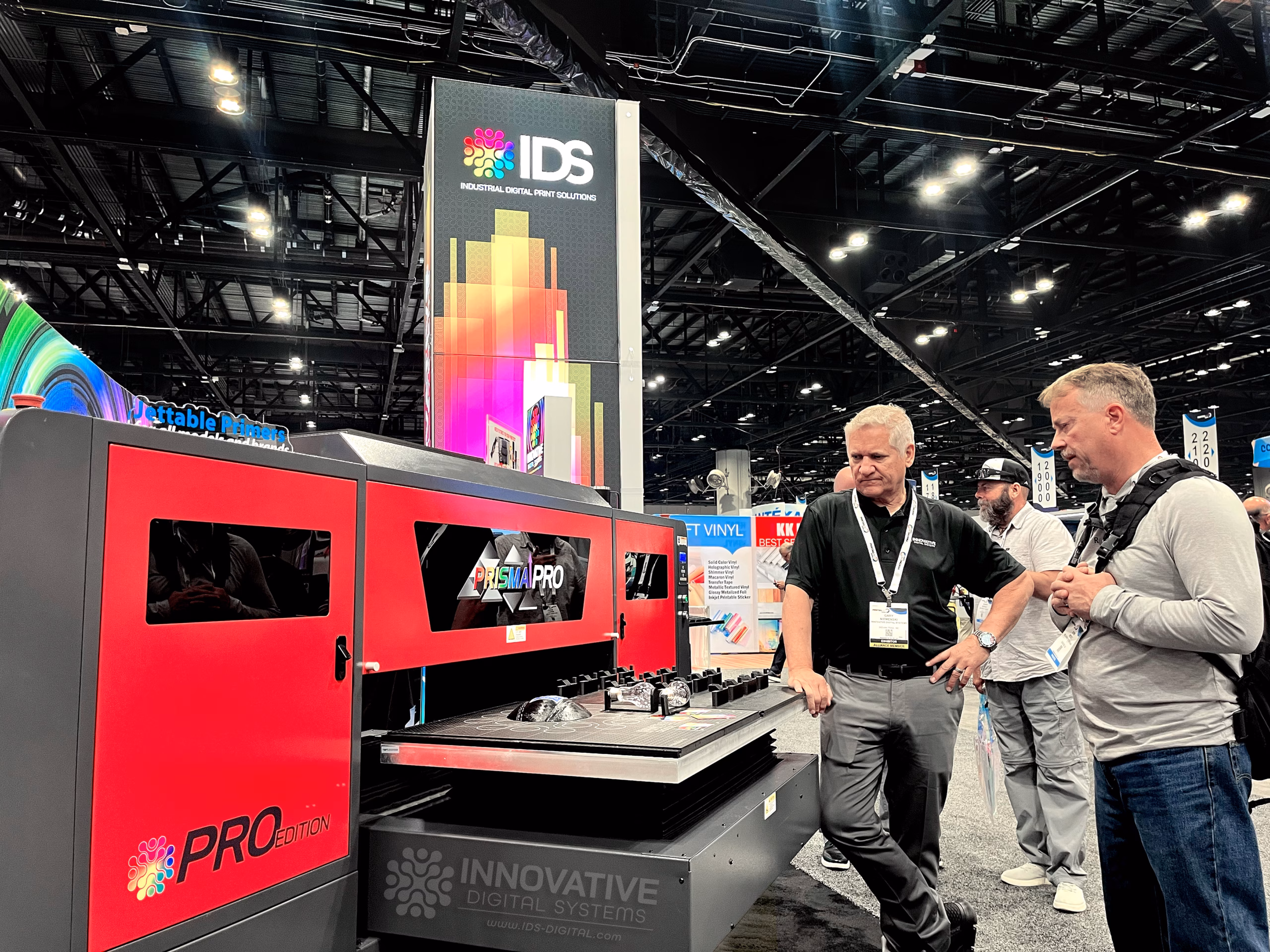

See the Prisma Z-Max Pro showcase advanced high-gap UV printing on dimensional and challenging products at PRINTING United 2026.
REQUEST A QUOTE OR SAMPLE
Tell us about your product, material, and printing goals. Our team will help determine the right printing solution for your needs. You can also request a printed sample to see the results firsthand.
